Pigtailing Wires: Your Guide To Safe & Reliable Home Electrical Connections

Dr. Salma Dicki I 16 Aug 2025

Adding new electrical devices or dealing with a busy junction box can feel a bit tricky, can't it? That's where pigtailing wires really comes in handy. It's a clever electrical wiring technique that helps you manage connections, especially when there isn't quite enough room for everything. This approach, which is actually pretty simple once you get the hang of it, is about making sure your home's electrical system stays safe and works well.

This method involves connecting a short piece of wire to combine several others, or to extend a wire that's a bit too short. It's a foundational skill for anyone looking to work on their home's electrical setup. Understanding pigtail wiring can genuinely make your DIY projects much smoother and, more importantly, much safer, as a matter of fact.

This guide aims to walk you through the process of pigtailing wires properly. We'll explore what it is, why it's so important for safety, and how you can make these secure connections step by step. You'll get a better grasp on electrical wiring concepts, and, you know, feel more confident about your home projects.

What is Pigtailing Wires?
Why Pigtail? The Benefits for Your Home
Tools and Materials You'll Need
Step-by-Step: How to Pigtail Wires
Pigtailing Specific Wire Types
Safety First: Important Reminders
Frequently Asked Questions About Pigtailing Wires
Taking the Next Step with Your Electrical Projects

What is Pigtailing Wires?

An electrical pigtail, you know, is basically an electrical technique. It's used to combine wires or to add length to wires that are a bit short. Think of it like creating a short bridge wire that connects multiple wires together, or connects a wire to a device when the original wire isn't quite long enough. This method is, in some respects, a very common practice in home electrical work.

Pigtailing simplifies excess wiring by combining wires, like ground wires, for example. Instead of trying to connect several wires directly to a single terminal on an outlet or switch, you connect them all to one short "pigtail" wire. That single pigtail wire then connects to the device. This moves the connection point from the receptacle to a wire nut, which is a key part of the process, as a matter of fact.

This technique is, actually, an essential electrical wiring approach. It's used when you're adding devices to an existing circuit or when there just aren't enough spaces in a junction box for all the connections you need to make. It's a simple, yet very effective, way to manage your wiring neatly and safely.

Why Pigtail? The Benefits for Your Home

Pigtail wiring is more than just a convenient technique; it's a carefully considered approach to electrical connections. One big reason to use pigtailing is safety. When you connect multiple wires directly to a single screw terminal on a device, it can sometimes create a loose connection over time. This can lead to overheating, which is, obviously, something you want to avoid.

By using a pigtail, you create a more secure connection point using a wire nut. This means the current feeds through a solid connection point, reducing the chance of loose wires at the device itself. This, you know, makes your electrical system much more reliable. It's about ensuring a consistent flow of electricity without any risky hot spots.

Another major benefit is space management inside junction boxes. Sometimes, you just don't have enough terminals on an outlet or switch for all the wires coming into the box. Pigtailing lets you combine several wires into one, freeing up space and making the box less crowded. This makes future work easier and, as a matter of fact, helps prevent wires from getting pinched or damaged.

Also, pigtailing can extend short wires. If you have a wire that just barely reaches a device, trying to connect it can be a real struggle. A pigtail wire gives you that extra bit of length, making the connection much easier to make and, very importantly, more secure. This is, basically, a simple DIY project that can save you a lot of frustration.

Tools and Materials You'll Need

Before you start pigtailing wires, you'll want to gather a few basic tools and materials. Having everything ready beforehand makes the job much smoother and safer. You'll need wire strippers, of course, to remove the insulation from the wire ends. A good pair of these is pretty essential for any electrical work, you know.

You'll also need wire nuts, which are the connectors that hold the pigtail and other wires together. Make sure you have the right size for the number and gauge of wires you're connecting. A voltage tester is also a must-have item. It helps you confirm that the power is truly off before you touch any wires, which is, like, super important for your safety.

For the pigtail wires themselves, you'll need some extra wire. The type of wire should match the existing wiring in your home. So, if you're working with 14-gauge copper wire, you'll need more 14-gauge copper wire. If you don't have any extra wire or black wires, for example, you should purchase the correct kind from a hardware store. It's really important to use the same gauge and material to maintain proper current flow, as a matter of fact.

A pair of needle-nose pliers can also be quite helpful for bending wire loops, especially when connecting to screw terminals. Safety glasses are also a good idea to protect your eyes from any stray wire bits. Having these items on hand will make the process of pigtailing wires much more manageable, you know, and safer too.

Step-by-Step: How to Pigtail Wires

This guide, led by James Adams of ABR Electric, walks you through how to pigtail wires properly for a safe and reliable electrical system. Wiring can be an intricate yet rewarding process, especially when it comes to ensuring that electrical systems function safely and effectively. Always use multiple sources and do your homework before performing any electrical work. Also, make sure all work is done with the power off, of course.

Preparing Your Wires

First things first, make absolutely sure the power to the circuit you're working on is off. Turn off the breaker at your main electrical panel. Then, use your voltage tester to double-check that no electricity is flowing to the wires you'll be touching. This step is, arguably, the most important one for your safety.

Once you've confirmed the power is off, strip about three-quarters of an inch of insulation from the ends of all the wires you plan to connect, including your new pigtail wire. You want enough bare wire to make a solid connection inside the wire nut. Make sure the cuts are clean and don't nick the copper wire itself. A good wire stripper makes this a lot easier, as a matter of fact.

If you're making a pigtail for an outlet, you'll want to turn your existing hot and neutral wires into a pigtail for your outlet. This means you'll have two hot wires (from the circuit) and one pigtail hot wire, and two neutral wires (from the circuit) and one pigtail neutral wire. This setup is, you know, pretty common for outlets.

Making the Connection

Gather the bare ends of the wires you want to connect. For example, if you're pigtailing hot wires, you'll take the two hot wires from the box and your single pigtail hot wire. Hold them together so their bare ends are even. This is, basically, pigtailing the hot and neutral wires respectively from the box and connecting them with the single, pigtail wire each.

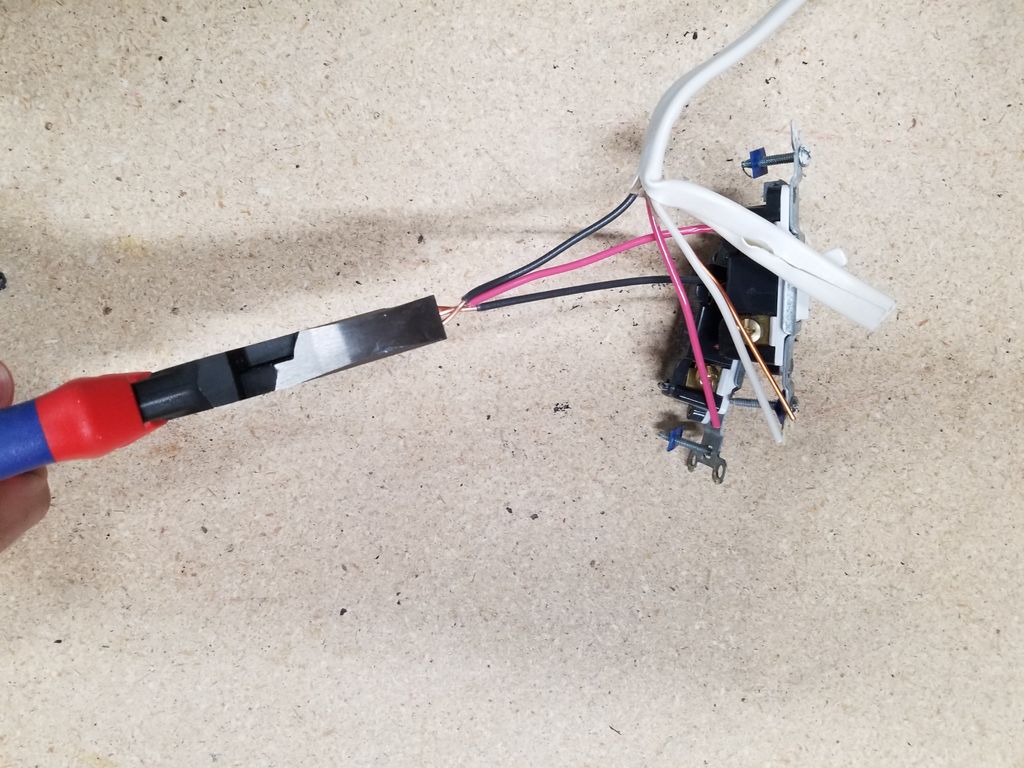

Twist the bare wire ends together tightly using pliers or your fingers, making sure they are securely intertwined. Then, take a wire nut of the appropriate size and screw it onto the twisted wires. Twist the wire nut clockwise until it's snug and you can't see any bare copper wire sticking out from underneath it. Give it a gentle tug to ensure the connection is solid. This is, you know, a very important part of making a good connection.

This method moves the connection point from the receptacle to a wire nut, so the current feeds through a very secure spot. This helps prevent loose connections at the device terminals, which is, honestly, a much safer way to do things. Repeat this process for all sets of wires that need pigtailing, whether they are hot, neutral, or ground wires, as a matter of fact.

Connecting to the Device

Once your pigtail connections are made, you'll connect the single pigtail wire to the device. If you're connecting to a screw terminal on an electrical outlet or end device, you have to loop the bare wire. Create a small loop at the end of the pigtail wire using your pliers. The loop should go around the screw terminal in a clockwise direction. This way, when you tighten the screw, it pulls the wire tighter around the terminal, instead of pushing it away, you know.

Place the looped pigtail wire around the screw terminal and tighten the screw firmly. Make sure there are no stray strands of wire sticking out that could touch other terminals or the box itself. This is, you know, a very common mistake that can lead to problems. A secure connection here is just as important as the wire nut connection.

After connecting the pigtail wire to the device, carefully fold the wires back into the electrical box. Make sure they are neatly tucked away and not pinched or stressed. Then, you can install the device into the box and put the cover plate on. Always double-check your work before restoring power, as a matter of fact.

Pigtailing Specific Wire Types

Pigtailing is a versatile technique that applies to different kinds of wires in your home's electrical system. Understanding how it works for each type can really help you tackle various projects with confidence. It's pretty much the same basic idea, but with some specific considerations for each wire's job, you know.

Hot and Neutral Wires

When you're working with hot (usually black or red) and neutral (usually white) wires, pigtailing is often used to connect multiple wires from the circuit to a single outlet or switch. For example, if you have two hot wires coming into a box and your outlet only has one hot terminal, you'd pigtail those two hot wires with a short piece of black wire. That single pigtail wire then connects to the outlet's hot terminal. This is, you know, a very common scenario.

The same idea applies to neutral wires. You'd combine two neutral wires from the circuit with a short piece of white pigtail wire, and then connect that single pigtail to the outlet's neutral terminal. This ensures that the current feeds properly to the device without overloading any single terminal. It’s a simple way to make sure everything gets the power it needs safely, as a matter of fact.

Ground Connections

Pigtailing ground connections is, you know, incredibly important for safety. The ground wire (usually bare copper or green) provides a path for electricity to safely escape in case of a fault. In many electrical boxes, you'll find several ground wires coming in, and they all need to be connected together and to the electrical box itself (if it's metal) and to any devices. This guide will teach you how to pigtail ground connections in metal and electrical boxes, and how to make a perfect pigtail.

To pigtail ground wires, you'll gather all the bare ground wires from the circuit, plus a short pigtail wire for each device and for the box (if metal). Twist them all together securely with a wire nut. Then, connect one pigtail from this bundle to the grounding screw on your outlet or switch. If you have a metal box, connect another pigtail from the bundle to the grounding screw inside the box. This ensures everything is properly grounded, which is, honestly, a very big deal for preventing shocks and fires.

Aluminum Wiring: Special Considerations

Discover whether pigtailing aluminum wiring is safe for your home electrical system. Older homes, you know, sometimes have solid conductor aluminum electrical wiring installed. While pigtailing is a common technique, it's not as straightforward with aluminum wires. Aluminum wiring can behave differently than copper, tending to expand and contract more with temperature changes, which can lead to loose connections over time. This can create potential risks.

Pigtailing involves connecting a short piece of insulated copper wire between the aluminum wire and the switch or receptacle connecting terminals. Although this technique may be an option, it's not a simple DIY project with aluminum. You need special connectors, often called CO/ALR connectors or specific crimp connectors, that are designed to safely join aluminum and copper wires. Using standard wire nuts with aluminum can be dangerous, as a matter of fact.

Learn the best practices, potential risks, and expert tips to ensure reliable and secure connections when dealing with aluminum wiring. If you have aluminum wiring, it's highly recommended to consult with electricians who emphasize that they are familiar with the specific requirements for repairing or replacing aluminum electrical wiring. How should aluminum electrical wiring be repaired? This article describes the immediate safety steps needed in a building where solid conductor aluminum electrical wiring is installed. This directory lists aluminum electrical wiring repair electricians & electrical panel repair or replacement electricians who emphasize that they are familiar with the proper procedures. It's a situation where professional help is, frankly, very much advised for your safety.

Safety First: Important Reminders

Electrical work, you know, always demands respect and careful attention. Your safety is, honestly, the most important thing. Before you touch any wires, always, always, always turn off the power at the circuit breaker. Don't just flip a light switch; go to your main electrical panel and turn off the breaker for the specific circuit you're working on. Use a voltage tester to confirm the power is truly off before proceeding, as a matter of fact.

Never work with wet hands or while standing in water. Make sure your work area is dry and well-lit. Use insulated tools, which means tools with rubber or plastic handles designed to protect you from electrical shock. Wearing safety glasses is also a very good idea to protect your eyes from any unexpected sparks or flying debris.

If you're ever unsure about a step, or if a situation feels beyond your comfort level, please stop and call a qualified electrician. There's no shame in seeking professional help; in fact, it's a very smart decision when it comes to electrical safety. Remember, a simple mistake with electricity can have serious consequences, so it's better to be safe than sorry, you know.

This is a basic tutorial on what electrical pigtails are and how to make them. However, always use multiple sources and do your homework before performing any electrical work. Also, make sure all work is done in compliance with local electrical codes. These codes are in place to keep you and your home safe, after all, you know.

Frequently Asked Questions About Pigtailing Wires

Here are some common questions people often ask about pigtailing wires:

Q: What kind of wire should I purchase if I don't have any extra wire or black wires?

A: You should purchase wire that matches the existing wiring in your home in terms of gauge (thickness) and material (usually copper). For instance, if your current hot wires are 14-gauge black copper, you'll need 14-gauge black copper wire for your pigtails. It's, you know, very important for safety and proper electrical function to match them up.

Q: Is pigtailing aluminum wiring safe?

A: Pigtailing aluminum wiring can be done, but it requires special connectors and techniques. Standard wire nuts are not safe for connecting aluminum to copper. You need special CO/ALR connectors or specific crimp connections designed for this purpose. It's generally recommended to have a qualified electrician handle aluminum wiring, as there are, honestly, significant safety risks involved if not done correctly.

Q: What is a pigtail electrical wire connector?

A: A pigtail electrical wire connector is, basically, a simple DIY project you create by taking a short piece of insulated wire and connecting it to one or more existing wires using a wire nut. This short "pigtail" then connects to a device or extends a short wire. It's a way to combine multiple wires into a single connection point, making wiring tidier and safer, you know, in a way.

Taking the Next Step with Your Electrical Projects

Pigtailing wires is, actually, a foundational skill that can make a real difference in your home electrical projects. It helps you manage connections, improve safety, and ensure your electrical system works reliably. Remember, understanding "what is pigtail in electrical wiring" in our detailed guide is just the start. The real value comes from applying this knowledge carefully and safely.

This guide, led by James Adams of ABR Electric, walks you through how to pigtail wires properly for a safe and reliable electrical system. For more in-depth information on various home electrical topics, you can learn more about electrical safety on our site. And, you know, if you're curious about other wiring techniques, be sure to check out this page for additional resources.

As you tackle your home improvement tasks, always prioritize safety and don't hesitate to seek professional help when needed. Taking the time to learn and apply proper techniques like pigtailing wires means you're building a safer, more functional home for yourself and your family, as a matter of fact. It's a skill that, honestly, pays off in peace of mind.
